Raw Materials:Stainless Steel, Carbon Steel, Galvanized Sheet, PVC Sheet, Cold Rolled Coils, Hot Rolled Steel, Aluminum Copper And So On.
Mesh Hole:0.2-500m
Hole Shapes:Round, Rectangular,Square,Triangle,Hexagonal,Diamond Fish Scale Hole,Lightly Pull Scale,Cross,Slotted And Special Patterns To Get Special Decoration Results.
Sheet Thickness :0.15-20mm
Sheet Size:1000*2000mm,1220*2440mm,3ft*8ftand Or As The Clients' Requirements .
Packing :Iron Pallet Or Wooden Pallet
Product Feature:
1. High quality smooth surface.
2. Easy to process and install, good sound absorption.
3. Durablew and long service life.
4. Attractive appearance and wide range of thickness available.
Used as:
Sound control Panels: Perforated sheet is widely used in highway, railway, subway and other transportation facilities in the municipal environmental noise control barrier wall construction objects; also used in generator room, factories, and other noise sources, where noise reduction is needed with installing sound-absorbing panels.
·Shopping mall and hotel facade cladding panels, wall panels, sunshades, both interior and exterior decoration
·Filters and strainers
·Mining screens, sifting screen, sieves
·Metal Floor Plate: Building stairs, walking floor, balconies, tables and chairs in the beautifully decorated metal plate
·Grills: For mechanical equipment guarding, protective cover, speaker mesh cover grilles
·Ventilation sheet for grain storage with breathable mesh ventilation
·Perforated tubes: Filter baskets and filter core in the welded tube forms
Material | Thickness (mm) | Hole DIA. (mm) | Pitch (mm) | Width (m) | Length (m) | Punching rate (%) | Weight (kg/sqm) |
Roll plate
| 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
0.35 | 5 | 4 | 1 | 20 | 24 | 2 |
0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 |
0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 |
Flat plate
| 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.1 |
0.55 | 1.1 | 2.2 | 1 | 2 | 22.7 | 3.4 |
0.55 | 1.5 | 2.8 | 1 | 2 | 26 | 3.3 |
0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 |
0.8 | 2 | 3.4 | 1 | 2 | 30.8 | 4.5 |
1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 |
1.5 | 5 | 8 | 1 | 2 | 35.4 | 7.8 |
3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 |
Stainless steel plate
| 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 |
1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 |
2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 |
Aluminum plate
| 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 |
1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 |
3 | 4 | 16 | 1 | 2 | 19.6 | 4.23 |
Product Tags:
|
|

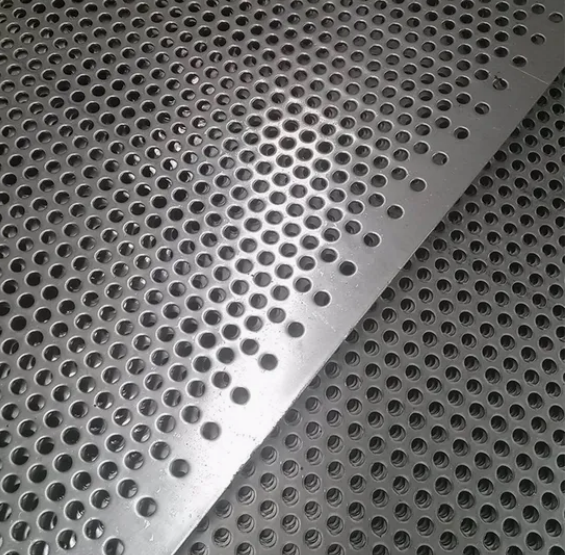

Round Hole Perforated Metal Mesh Stainless Steel Punching Mesh Images
|
