Molded grating is manufactured by laying continuous glass fibers in the mould in the direction of vertical and horizontal, and thoroughly wetted out with resin, layer by layer. When the weaving process is completed, the mould is heated to cure the panel. After curing, the panel is ejected from the mould. The standard panel would have meniscus (concave) top surface. Any process such as post applied grit could be bonded after as a secondary operation.
| Product name | FRP Fiberglass molded grating |
| Material composition | Fiberglass roving,resin,filler |
| Resin type | GP, ISO, VE, PH |
| Color | Black , white , red , green , yellow , blue , grey or customized color |
| Surface | Smooth,GritFine grit,Concave,Grit cover,Chequer cover |
| Fabrication length | 1007x3007,1220x3660,1007x4047 |
| Certificate | ISO9001,SGS |
| Feature | Aging-Resistant,insulation,corrosion resistance |
| Size | Customised Size |
| Trade terms | EXW, FOB, CNF, CIF |
| Eco-Friendly | Yes |
| Shipping Way | By sea/air/express |
> Industrial areas: such as chemical plants / plating plant operating platform, maintenance platform,photovoltaic power generation platform walkway
>> Sewage treatment areas: sewage treatment plant aisle and sealing cover
>> Municipal Engineering areas: Pedestrian Walkway, Trench / Cable Trench Cover, Tree Grating
>> Marine applications area: Boat decks or bridge materials, Offshore oil platform
>> Other civilian areas: such as car washing, cattle and sheep farms and so on
>>Washing liquid can be used to clean the dust and dirties on the surface, no need of other maintenance measures.
>> Avoid direct connection with naked fire and high temperature, such as electric welding.
>>Avoid the drag and impact damage from any steel, steel sharp tools, and the painting pollution.
Product Tags:
|
|

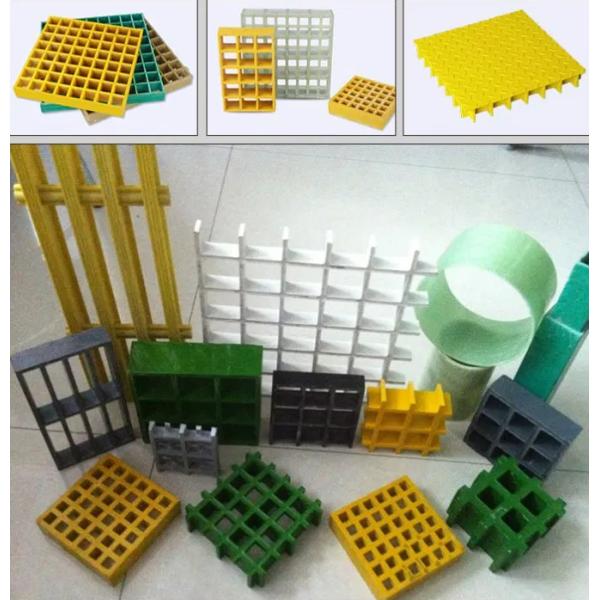

38X38X38 GRP FRP Grating Walkway Pigeon Floor Fiberglass Plastic Grid Fiberglass Mesh Grating Images
|
